| Model Number |

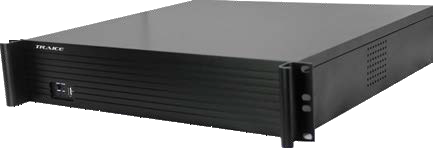

TR-H8.0NVR/4HDD-36CH |
| Platform | Recorder Solutions |
| Operating Temperature | -10°C to 55°C |
| Operating Humidity | 10% to 90% |
| Operating System | Embedded Linux |
|---|
| Form | 2U |
|---|
| Image Code Control | Variable and constant bitstream options |
|---|
| Number Of Streams | Dual streaming per channel |
|---|
| Video Standards | 4K2K (3840 x 2160) at 30 fps |
|---|
| Monitor Support | 4K2K, 1080p, 960p, 720p |
|---|
| Max Simultaneous Stream And Playback |
|---|
| 720p Resolution | 36ch + sub 960H + 4 ref. + 16 play |
|---|
| 960p Resolution | 36ch + sub 960H + 4 ref. + 16 play |
|---|
| 1080p Resolution | 36ch + sub 960H + 4 ref. + 16 play |
|---|
| 5mp Resolution | 36 ch + sub 960H + 4 ref. + 9 play |
|---|
| Bandwidth | 300 Mbps |
|---|
| Number Of Hard Discs | 4 SATA HDD's (4 TB max, each) |
|---|
| Max Playback Channels |
|---|
| D1 Resolution | 36 ch |
|---|
| 720p Resolution | 36 ch |
|---|
| 960p Resolution | 36 ch |
|---|
| 1080p Resolution | 36 ch |
|---|
| 5mp Resolution | 36 ch |
|---|
| External Ports | 1 |
|---|
| Network Audio Input | 36 / 25 / 16 ch |
|---|
| Video Output | 1 ch VGA + 1 ch HDMI |
|---|
| Audio Output | 1 ch RCA |
|---|
| Network Port | 4 RJ45,10M/100M/1000M self-adaptive LAN port |
|---|
| Usb Port | 2 USB 3.0 port, 2 USB 2.0 ports |
|---|
| Alarm Input | 16 ch |
|---|
| Alarm Output | 8 ch |
|---|
| rs485 | RS485 full duplex |
|---|
| e-sata | 1 port |
|---|
| Privacy Masking | 4 regions per channel |
|---|
| Recording Mode | Manual, auto, dynamic detection, alarm triggerered, scheduled |
|---|
| Backup | USB mobile HDD, USB DVD-RW |
|---|
| Recording Storage | Local HDD, network |
|---|
| Mobile Surveillance Support | iPhone, Windows Mobile, BlackBerry, Symbian, Android smart phone |
|---|
| Power Supply | AC110-220V 500W 50-60Hz |
|---|
| Power Consumption | <50W (without HDD) |
|---|
